0.30 - 2.30mm Universal Extension Spring Machine / Spring Making Machinery

Brand Name : XD

Model Number : CNC-20

Certification : CE / ISO9001

Place of Origin : China

MOQ : 1 set

Payment Terms : TT LC

Supply Ability : 30 sets per month

Delivery Time : 20 days

Packaging Details : Standard heat treated wooden case

Axis number : 3 axis

Servo brand : Sanyo denki

Machine color : Blue painting

Optional tools : Spinner

Machine weight : 900kgs

Power ac : 380V 50Hz

Price : Negotiable

Contact Now

0.30-2.30mm 3-4 axis CNC20 extension spring machine with 100pcs/min production rate

XD-CNC20 universal spring forming machine

Technical Parameter:

Model:	XD-CNC20
Wire diameter:	φ0.3～2.3 mm
Axes:	3 axes
Maximum Outside Diameter:	40mm
Maximum Feeding Length:	unlimited
Maximum Manufacture Speed:	100pcs/min
Feed Speed	200m/min
Memory Number:	1000PCS
Wire Feed Servo Motor:	2.7 KW
Cam Servo Motor:	2.7 KW
Quin Servo Motor	0.75 KW
Power AC:	220V 3P 50/60Hz
Dimensions (LDH):	1400X550X1600MM
Wooden Case Dimensions	1600x600x1700mm
Machine Weight:	900Kg
Gross Weights	950Kg

Details:
1. CNC20 spring machine consists of cam axis, wire feeding axis, rotation core and rolling axis. The

mechanical part has eight sets of sliding blocks. The winch and cam rotation have three mechanical

part has eight sets of sliding blocks.The winch and cam rotation have three mechanical action types:

extruding,punching and molding.

2. The computerized cam rotation system can be set from 0.1- 359.9°, every two wire feeding wheels constitutes of one group, totally two groups.
3. The spring machine rotation core system is installed on the axis. The axis can rotate leftwards and

rightwards. The rolling axis is installed on the sliding house. The cam drives it rotate 360°, also can

control direction action or designated moves back and forth.

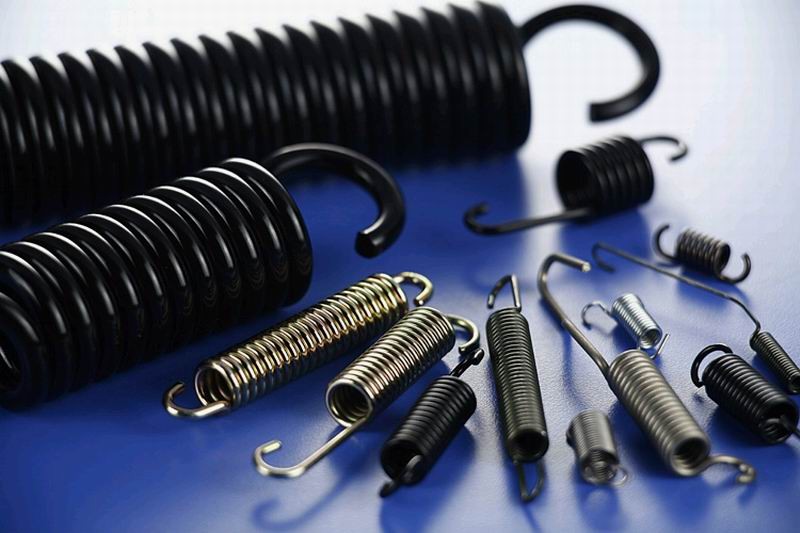

Applicated products:

0.30 - 2.30mm Universal Extension Spring Machine / Spring Making Machinery

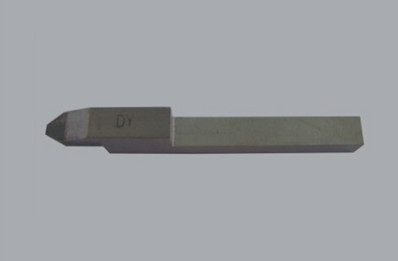

Tooling prentation:

0.30 - 2.30mm Universal Extension Spring Machine / Spring Making Machinery
